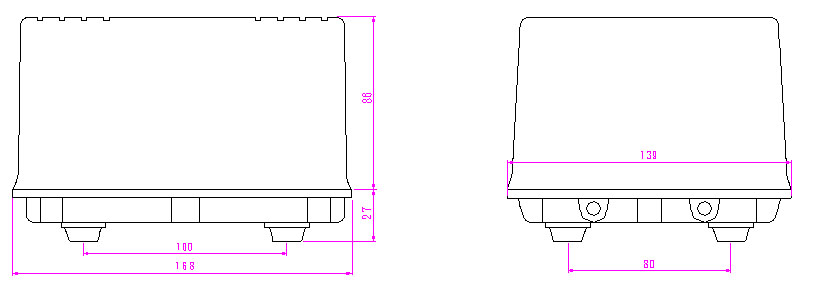

Discription & Dimensions
Compact Version, Low Energy Consumption, Oil-free and Easy Maintenance!
These models are developed for limited space applications. All HAKKO standard linear air pumps can be customized to this economic type.
This economic type has suction and exhaust functions. With no sliding parts, HAKKO linear diaphragm air pumps provide the lubricant free linear motion and deliver smooth and clean airflow. Linear diaphragm air pump made by us can be used as an air pump for wastewater treatment, an air pump for medical application, an air pump for water gardens, an air pumps for painting, spraying, an air pumps for inflatable packaging material machines, or an air pumps for bubble bath.
Specification
| HK-25SP | ||
| Rated Voltage (V) | AC 120V or AC 220/230/240V | |
| Power supply frequency (Hz) | 50/60 | |
| Normal pressure (kgf /cm² ) | 0.1 (1.42psi) | |
| Exhaust quantity (L /min) | 25 / 0.90 | |
| Power (w) | 23 | |
| Noise level (dB) | 44 | |
| Closed pressure | psi | 5 |
| Kgf /cm² | 0.35 | |
| Weight (kg) | 2.3 | |
Product Curve Line
 |
 |
Applications
 |
 |
 |
 |
Rubber feet |
Diaphragm set |
Actuating Arm |
L-Tube |
